SCIM Integration - Okta callback gets 503 error (Part 2)

[ktelant]

I previously created a post with the same problem: SCIM Integration - Okta callback gets 503 error. At that time the problem was with my local application so that it is difficult for Okta team to investigate it. Now I have configured Okta SCIM with an application that is accessible by public. I’d like to continue my question. I’m formatting my question below.

I’m trying to provison SCIM integration with a SAP Commerce (Hybris) application which has an OAuth2 server too.

• I created a OAuth2 client in the SAP Commerce.
• Then in Okta SCIM integration, I filled out all the required information.Clicked on the button “Authenticate with {APPNAME}”.
• A new browser window directed me to the OAuth2 server. After login successfully, the browser window redirects to GET https://system-admin.okta.com/admin/app/cpc/dev-17947277_dcbackofficed2_1/oauth/callback?code=XXXXXX&state=YYYYYY. The response is 302.
• Then then the browser window redirects to https://dev-17947277-admin.okta.com/admin/app/cpc/dev-17947277_dcbackofficed2_1/ZZZZZZ/oauth/callback?code=XXXXXX&state=YYYYYY, here I got the 503 error.

I have read all other posts that described the similar or same problem. It looks like I need someone to read the server log on Okta side? Can someone help me ?

Thank you!

[andrea]

Do you know if the Authorization Server you are using for the OAuth auth was able to return tokens back to Okta? I’m seeing what looks like a 401 error being returned when we attempted to get tokens.

[ktelant]

Andrea,

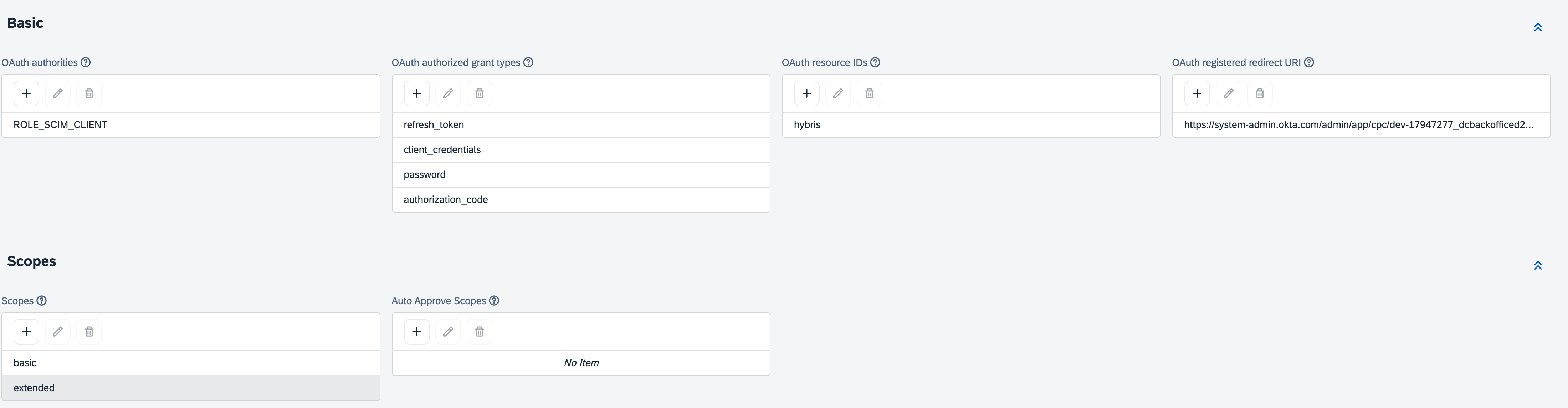

Thank you for your reply. I’m not sure how to find the information you need. I attached a screenshot of the configuration of the OAuth client. Maybe you’re talking about “grant types”.

Is Okta trying to connect directly to the authorizationserver of SAP? I thought it is the browser that is doing all redirects. If you can share the request/response of the 401 error. I can take a look too.

[andrea]

Okta will still make a server-side call to complete Authorization Code flow and get tokens back from the OAuth server.

Unfortunately, I don’t have more details than that our logs show a 401 error was returned, thats why I was hoping you’d be able to check the OAuth logs to see if there were more details about the cause of that 401 logged.

[ktelant]

I can try to search SAP server log. But I’m not an expert in OAuth. If you can give me any clue on what the keywords I can use, it will be great.

[andrea]

The 401 would imply there is some sort of authentication error, so I would look for words like client, credentials, secret, invalid, etc.

[ktelant]

Andrea,

Thank you for your answers. I just want to give you an update before close the discussion. The 503 problem has been magically resolved. I don’t know why. Maybe it is a combination of SAML SSO and SCIM. But anyway we have passed the obstacle. Now I have another problem with SCIM webservices implementation of SAP. It is another story now.

Again, thank you!
